Use the Product Builder to design customization areas
Learn the Product Builder interface — canvas, modules panel, Element Options, print areas, and keyboard shortcuts for building customizable products.
Updated April 25, 20265 min read
The Product Builder is the visual editor where you design what customers can customize. You add elements to a canvas, configure their behavior and permissions, define print areas, and preview the final product customizer.
Before you start
- You have created a Chamevo product with at least one view (see Create your first customizable product).
Open the Product Builder
- Go to Chamevo > Products.
- Expand a product and click Edit in Product Builder on a view.

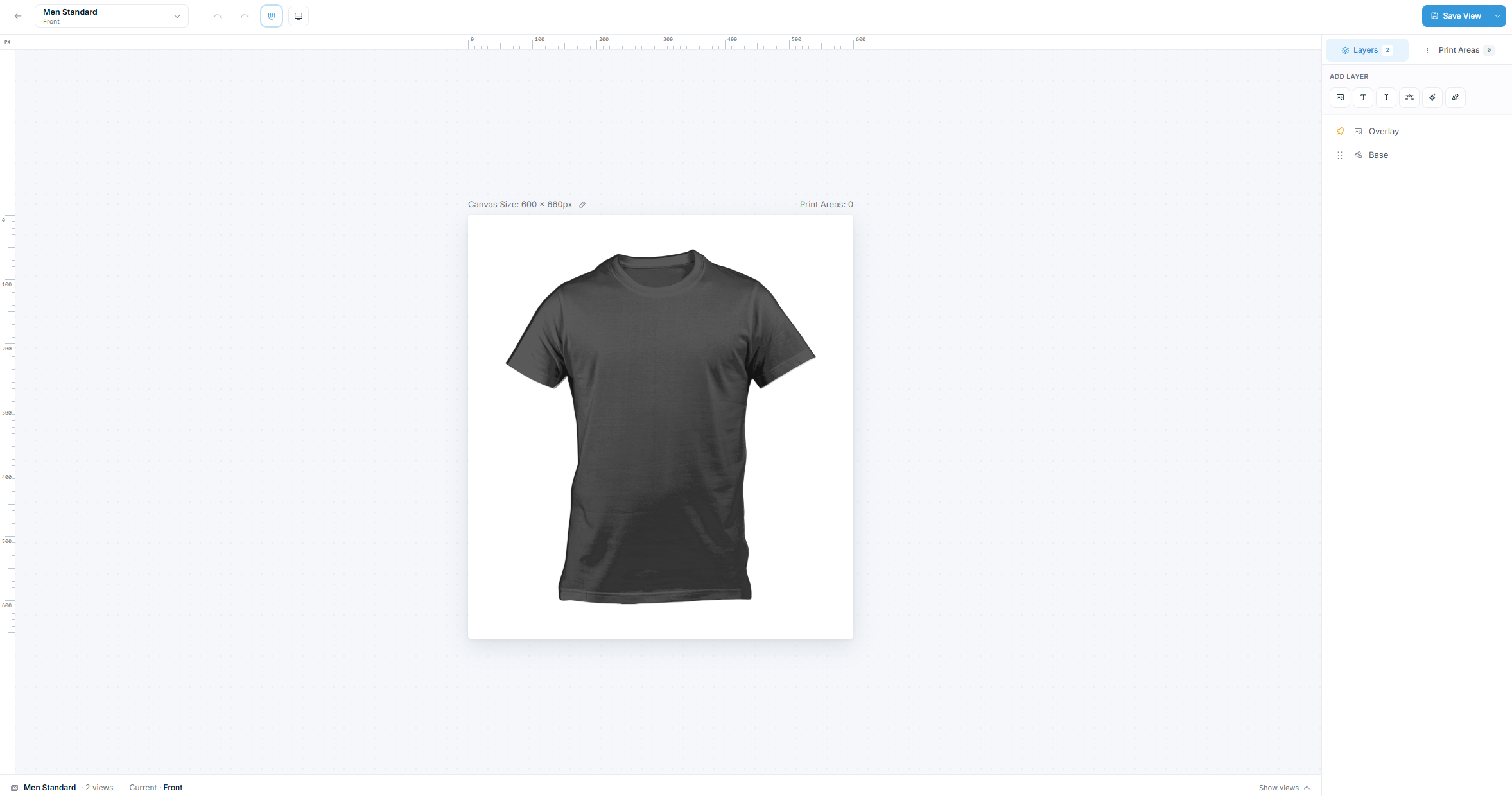

The Product Builder has three main areas:
- Canvas (center) — the working area where you place and arrange elements.
- Modules panel (left) — tools for adding text, images, graphics, and other elements.
- Element Options panel (right) — properties and permissions for the selected element.
Work with elements
Add elements
Use the modules panel to add elements to the canvas:
| Module | What it adds |
|---|---|
| Text | A text element with configurable font, size, color, and permissions |
| Images | An image from your graphics library or an uploaded image |
| Graphics |
